(Hotswap) Promenade RP24HS

$60.00

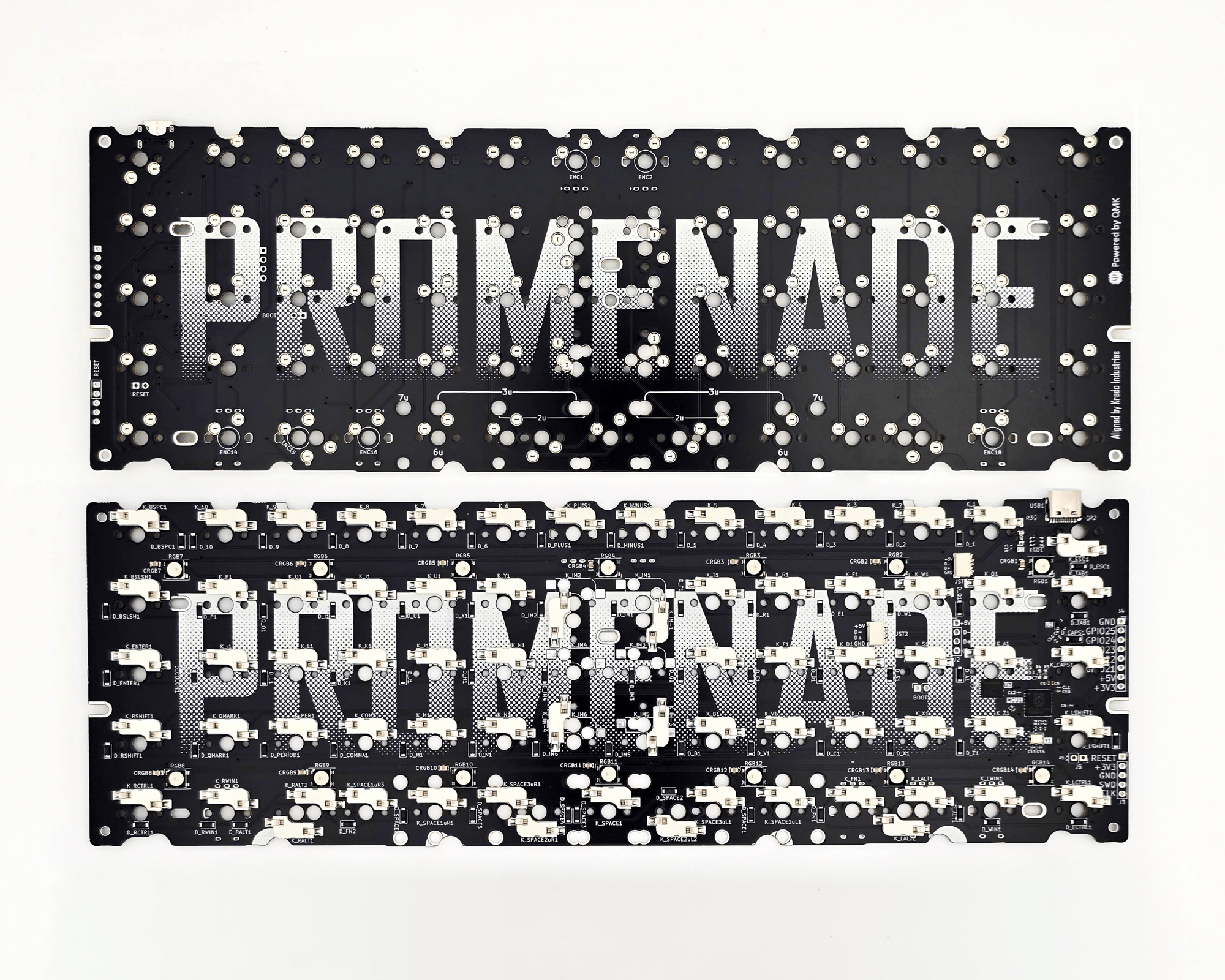

Image 1 of Promenade RP24HS PCB (Hotswap)
Image 2 of Promenade RP24HS PCB (Hotswap)

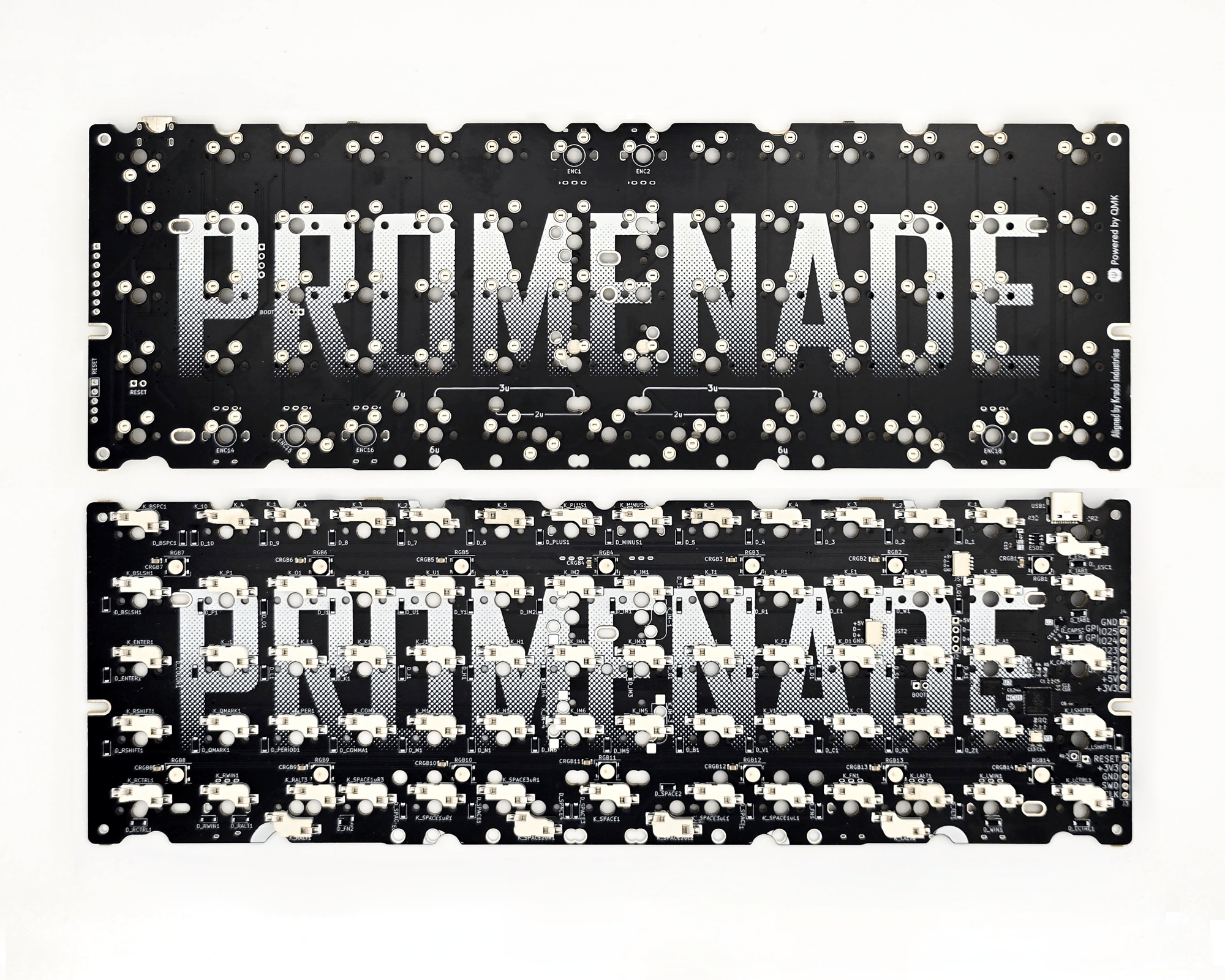

Image 3 of Promenade RP24HS PCB (Hotswap)
Image 4 of Promenade RP24HS PCB (Hotswap)
Image 5 of Promenade RP24HS PCB (Hotswap)
1 of 5
View cart

This item is in stock and will ship in 2–3 business days.

The Promenade is an ortholinear keyboard that uses 1.5u Ergodox-style modifier keys. It is designed to fit in many 60% cases. This is an independent remake of the Boardwalk PCB with some additional features.

There is a 1.5u and a 1u center-column version of the PCB. This is PCB only and does not include keycaps, switches, a case, or a plate. If you would like a plate, please order one here: Promenade FR4 Plates

The solder version with more layouts can be found here: Promenade RP24S PCB (Solder ver.)

PCB Features

  • Powered by QMK; VIA compatible
  • RP2040
  • 32 Mbit flash memory (W25Q32JV)
  • ESD over-current protection
  • Hot-swap sockets (white)
  • Edge cuts for some O-ring boards*
  • RGB underglow
  • Two JST connector locations for daughterboards**
  • Breakout pins
  • Rotary encoder support
    Rotary encoder support diagram
  • PCB (and FR4 plate) thickness/color: 1.6mm / black
  • USB-C***

Layouts

1.5u Layout Options ⌨
1.5u Layout Options diagram
1u Layout Options ⌨
1u Layout Options diagram

*The 1.5u version can be converted to the 1u version (and vice versa), but it requires desoldering and resoldering hot-swap sockets. This is not recommended, but it is possible if your desired layout is out of stock.

2u, 3u, 6u, 7u Spacebar Support

Warning: Clip-in stabilizers will only work on 7u and 6u spacebars. The 3u and 2u stabilizer holes slightly overlap, making it impossible for them to be secured properly. Screw-in stabilizers are therefore recommended.


More Pictures

Click to show more pictures

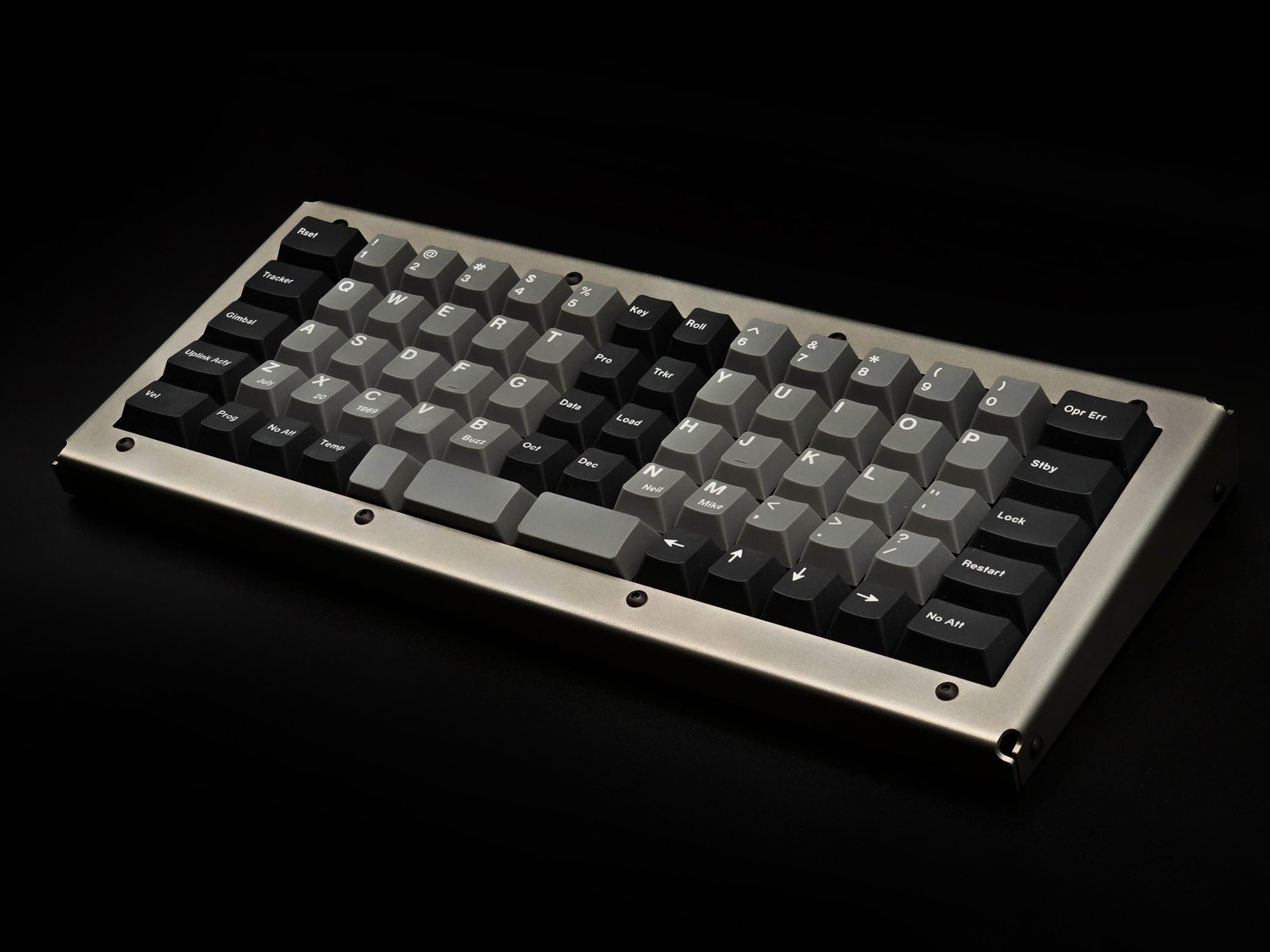

TinyNeko with GMK Hineybeige M0110 with GMK Space Cadet Frog Mini with GMK Sixes

Case Compatibility

Please see my comment on Geekhack regarding case compatibility.

It is impossible for me to compile a list of every possible 60% case that might work, and fit cannot be guaranteed for cases that have not been tested. Some cases might work, but may require extensive modification to the case and/or PCB.

In general, the Promenade should work in most GH60-compatible 60% cases that are either tray mount or have top-mount-style plates. This PCB is also designed to work in gummy O-ring style cases like the Bakeneko. Most cases will require a custom plate. Some (most tray mounts and gummy O-ring cases) can use a simple drop-in plate like the ones sold on this site .

I have personally built Promenades in:

  • Geon Frog Mini (custom plate)
  • TinyNeko
  • HMKB 60% (BW)
  • Ryloo Studio “Hello” M0110 (custom plate)
  • BBox60 (required heavy case modification)
  • Mekanisk Fjell and Klippe T
  • KBDFans Acrylic 5 Degree (required some case modifications)
  • dn60 (required extensive PCB modifications and limited usable layouts)

Others have built Promenades (or Boardwalks) in:

  • Tofu60
  • Tofu60 v2 (custom plate)
  • KBDFans Holy 60
  • Saturn 60 (Boardwalk plates offered at GB)
  • Bakeneko60
  • GH60
  • Salvation

The Promenade PCB will NOT work in:

  • QK60
  • Monokei Kei V1

*The edge cuts are designed to fit many common gummy O-ring 60% boards like the Bakeneko. Because the switches in the corners are a bit farther from the sides of the board, the friction fit of the gummy O-ring may not be as tight as a normal PCB. There are M2 standoff holes in the corners to expand the O-ring if desired.
**Tested and working on C3 and C5 Unified daughterboards. JST cable and daughterboard are NOT included.
***For compatibility with some daughterboard cases, the USB-C port can be removed with either a heat gun or soldering iron and pliers, or flush cutters. Please be careful when removing it. Reinstalling a USB-C port will likely not be possible once removed.
